First Alert Hardwired Smoke & CO Home Value Pack

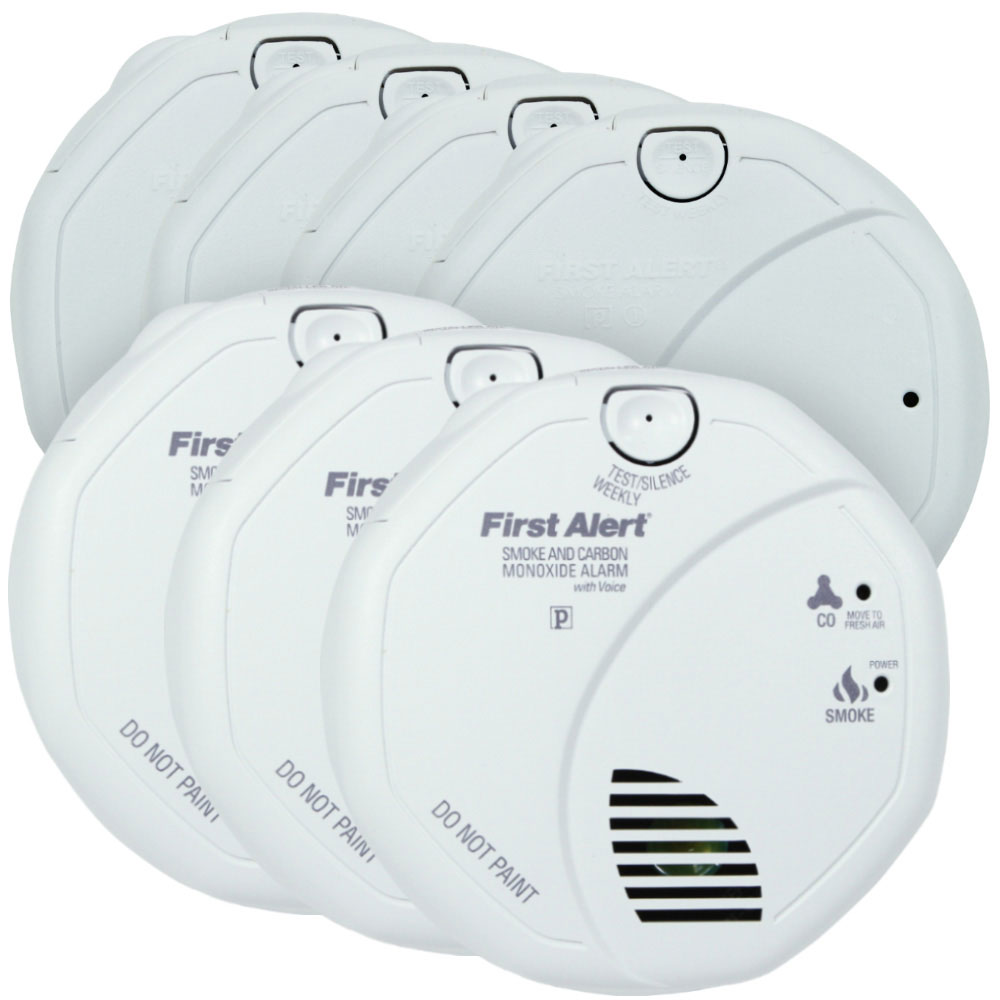

This wired in smoke & co alarm value pack includes three First Alert SC7010BV Hardwired Talking Smoke and Carbon Monoxide Alarms and four First Alert 3120B Hardwired Photoelectric and Ionization Smoke Alarms with Battery Backup

First Alert SC7010BV Hardwired Talking Smoke and Carbon Monoxide Alarm

By continually striving to deliver the most intuitive and technologically superior equipment on the market, First Alert has earned its reputation as an invaluable ally in bolstering security and attaining unrivaled levels in peace of mind. This performance exceeding model utilizes a photoelectric smoke sensing chamber that actively seeks out slow smoldering fires, while simultaneously searching for traces of CO within the surrounding area. Additional features such as a single button test/silence option and voice alarm capabilities add incredible depth to an already flexible alarm.

Featuring a swift and near effortless installation process, the First Alert Hardwired Talking Smoke and Carbon Monoxide Alarm comes equipped with Optipath 360 Technology that provides 360 degrees of direct access to the smoke sensor. Overall versatility is further increased with the implementation of an End of Life signal that will alert your surroundings of a low battery. This model complies with UL217 and UL 2034 standards and meets new construction requirements for the state of Massachusetts and other states/counties that have similar requirements.

Photoelectric and Ionization Smoke Alarm with Battery Backup

This Hardwired Photoelectric and Ionization smoke alarm provides double protection for both flaming and smoldering fires. The 3120B smoke detector is a state-of-the-art hardwired alarm with a battery backup that features dual photoelectric and ionization smoke sensing technologies. This alarm includes two latching features. One alarm latch easily identifies an initiating alarm even after alarm condition has subsided. the second is a low battery latch that identifies which unit is in low battery condition by blinking the green power light. This alarm also has two silence features that includes a low battery silence that temporarily silences the low battery chirp for up to eight hours. Other features include an 85dB horn, single button test/silence, an easy access battery drawer and dust cover. Installation is quick, easy and cost effective. Connection to AC power is made with a Quick-Connect wiring harness.

The First Alert Hardwired Smoke & CO Home Value Pack includes:

(three) First Alert SC7010BV Hardwired Talking Smoke and Carbon Monoxide Alarms

(four) First Alert 3120B Hardwired Photoelectric and Ionization Smoke Alarms with Battery Backup

First Alert SC7010BV Hardwired Talking Smoke and Carbon Monoxide Alarm Features:

• Electrochemical Carbon Monoxide Sensor
• Photoelectric Smoke Sensor
• Optipath 360 Technology
• Exclusive Programmable Voice Location Technology
• End of Life Signal
• 120-Volt AC with 2 AA battery back up
• Single button test/silence
• Spread Spectrum Horn Tone
• Perfect Mount - allows for easy alignment of alarm
• Easy Installation/Maintenance
• 10 Year Limited Warranty

Photoelectric and Ionization Smoke Alarm with Battery Backup Features:

• Utilizes both ionization and photoelectric smoke sensors for maximum protection.
• Two Latching Features - Alarm Latch and Low Battery Latch.
• Two Silence Features - Alarm Silence and Low Battery Silence.
• Two AA Battery Backup.
• Optipath 360 Technology.
• Emits T3 Pattern.
• 10 Year Limited Warranty.

How to Install First Alert Hardwired Smoke & Carbon Monoxide Alarms:

In this guide, we'll be showing you how to install First Alert Hardwired Smoke and Carbon Monoxide Alarms. Here are a few items you'll need before starting the installation process: Needle-nose pliers or utility knife, screwdriver, wire stripper, wire nuts and a ladder.

Hardwired Smoke or Carbon Monoxide Alarm Requirements:

• 120V household electrical circuit (unswitched 120VAC)
• Standard wiring junction box to a 4 in. (10 cm) size, on either the ceiling or wall
• Selecting an appropriate location to install your smoke and carbon monoxide alarms (see below guidelines for additional information):

  • When installing an alarm on the wall, the top edge of an alarm should be placed between 4 in. (100 mm) and 12 in. (300 mm) from the wall/ceiling line.
  • When installing an alarm on the ceiling, place the alarm as close to the center as possible.
  • In either case, install the alarm at least 4 in. (100 mm) from where the wall and ceiling meet.
  • First Alert Smoke Alarm FAQs
  • First Alert Carbon Monoxide Alarm FAQs

---

Connecting First Alert Hardwired Alarms to 120V Wiring

To begin, turn off power at the junction box and connect your alarm to the building's electrical wiring.

1. Locate the junction box and turn off power
2. Remove the power connector from the new alarm's packaging
3. Using wire nuts, attach the hot (black), neutral (white), and interconnect (orange) wires

Black wire (hot)	Attach to black wire on power connector
White wire (neutral)	Attach to white wire on power connector
Orange wire (interconnect)	Standalone (single-station) alarm: This wire is not needed; tuck the orange wire into the junction box. Interconnected alarms: Strip 1/2 in. from the orange wire on the connector Use a wire nut to attach it to the orange wire in the junction box (see image below).

---

Mounting First Alert Hardwired Alarms

1. Secure the mounting bracket to the ceiling or wall using screws (included in the package)
2. Insert the power connector into the plug on the back of your alarm
3. Tuck any hanging wires into the junction box
4. Position the base of the alarm onto the bracket and turn it clockwise until it's secured
5. Remove the pull-tab to activate the backup battery

---

Installing Additional and/or Interconnecting First Alert Hardwired Alarms

If you are installing more smoke or carbon monoxide alarms, you'll want to repeat the process throughout the building. Interconnected smoke and co alarms must meet all requirements:

• The same fuse or circuit breaker must power all interconnected alarms.

• Up to 18 compatible detectors can interconnect, with a limit of 12 smoke alarms.

• The total length of wire interconnecting the alarms should be less than 1,000 ft. (300 meters). This type of wire is commonly available at hardware and electrical supply stores.

• All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA 72, NFPA 101, and your local building code for more information.

• Interconnect wiring diagram:

If you have any doubts or reservations about these interconnect requirements, please contact an experienced electrician to install your wiring and hardwired alarms.

---

Restoring Power and Testing Hardwired Alarms

Once you've installed your hardwired alarms, you'll want to restore power to the junction box. Under regular operation, the power indicator light on the alarm will shine/blink to indicate that it is receiving AC power.

Here's how you can test standalone or interconnected alarms:

• Standalone Alarms: Press and hold the Test/Silence button until the unit triggers an alarm.

• Interconnected Alarms: Press and hold the Test/Silence button until the first unit triggers an alarm. All interconnected detectors should sound off. Repeat this process to test each alarm in the interconnected series.
